Enphase Battery & EV Charger Service

Enphase IQ Combiner 6C
Enphase IQ Battery 5P
Enphase IQ System Controller
Enphase IQ EV Charger 2

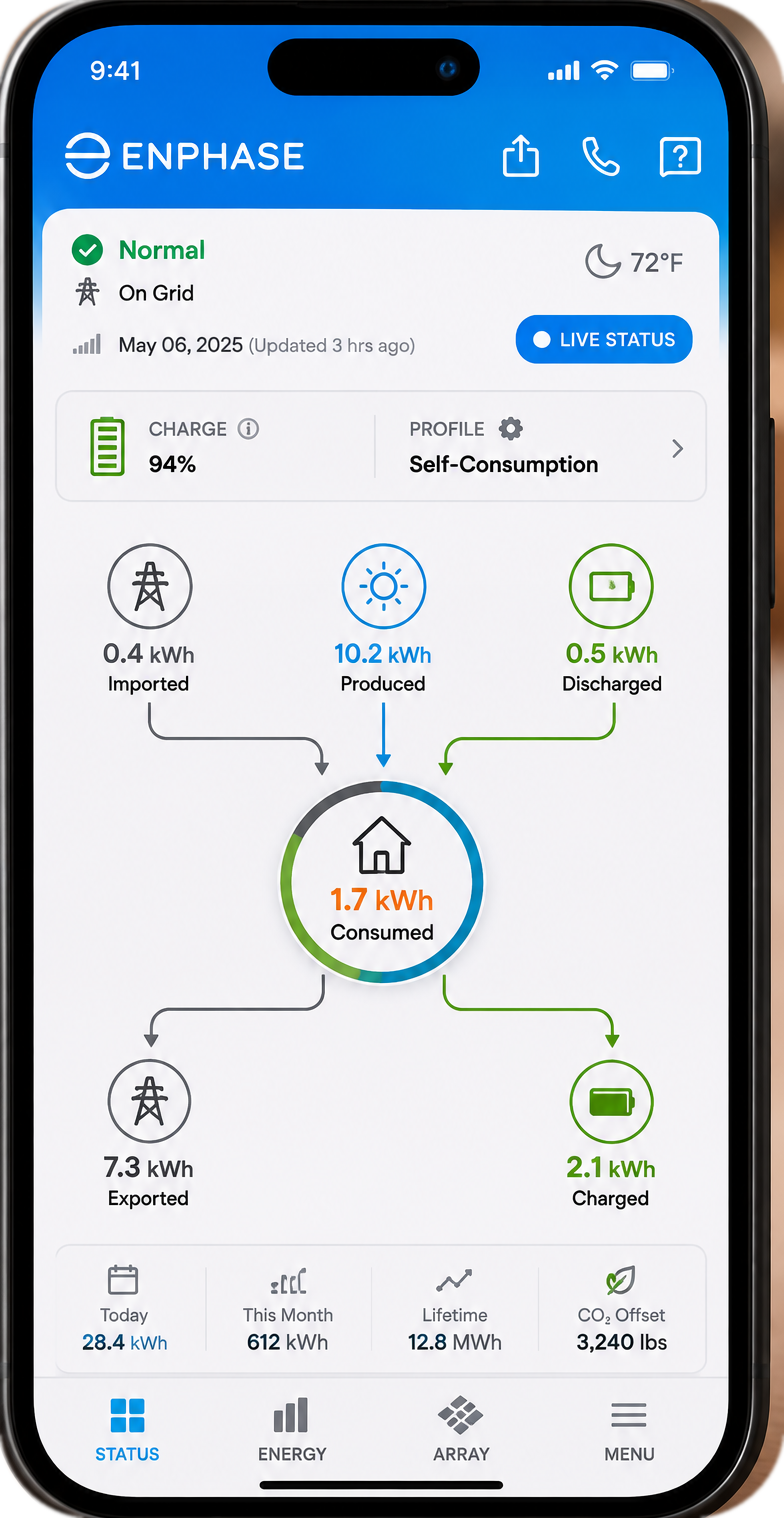

The Enphase App showing solar production, battery charge and home consumption

Swipe the display to see every part →

1 of 7

The Solar Panel

The module itself — glass, cells and an aluminium frame. The part everybody pictures when they think “solar,” and the part that fails least often.

Specs & why they matter

  • Typically 400–500 W per module on a residential roof today
  • Tempered glass over crystalline-silicon cells in an anodised aluminium frame
  • Power output is normally warranted for 25 years — the longest-lived part of the system
  • Degrades slowly and predictably, so a sudden drop in production almost never starts here

2 of 7

The Micro-Inverter, Behind the Panel

Turn the module round and there it is: one micro-inverter per panel, tucked up under the top corner of the frame and bolted to the rail by the brackets either side. It converts that panel’s DC to AC right there on the roof.

Specs & why they matter

  • One micro-inverter per panel, bolted to the rail under the top corner of the frame
  • IQ8M peaks at 330 VA, IQ8A at 366 VA; 97–97.5% CEC weighted efficiency
  • Warranted up to 25 years — the longest term on any inverter we service
  • Grid-forming: paired with an IQ System Controller 2 the array can make power in an outage with no battery at all
  • Each panel converts on its own, so shade or a fault on one does not drag the rest of the roof down

3 of 7

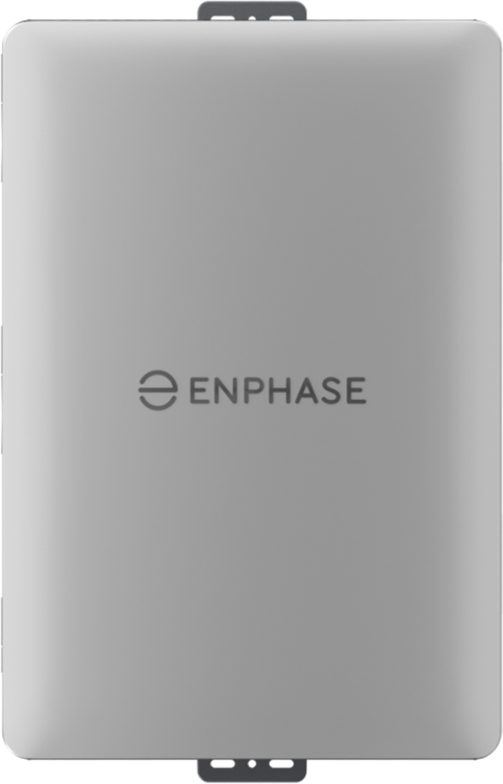

The IQ Combiner

Every micro-inverter’s AC run lands in here, on its own breaker, and leaves as one circuit. Behind that plain white door is the box we open first on almost every service call.

Specs & why they matter

  • Every micro-inverter’s AC run lands on its own breaker and leaves as a single circuit
  • The IQ Combiner carries the IQ Gateway, which is what reports panel-by-panel production
  • Because the data is per-panel, one dead micro-inverter shows up here as one flat line rather than a vague shortfall

4 of 7

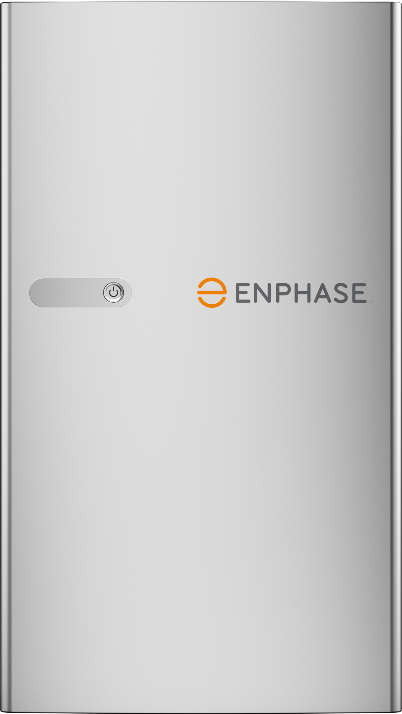

The IQ Battery

Storage for what the array makes and the house does not use yet. A slim silver slab with almost nothing on its face — one status light and a wordmark.

Specs & why they matter

  • 5.0 kWh usable energy per unit
  • 3.84 kW continuous, 7.68 kW peak for 3 seconds
  • 15-year warranty, up to 6,000 cycles
  • Six grid-forming micro-inverters are built into each battery
  • Modular — units are added as the load grows rather than sized once at install

5 of 7

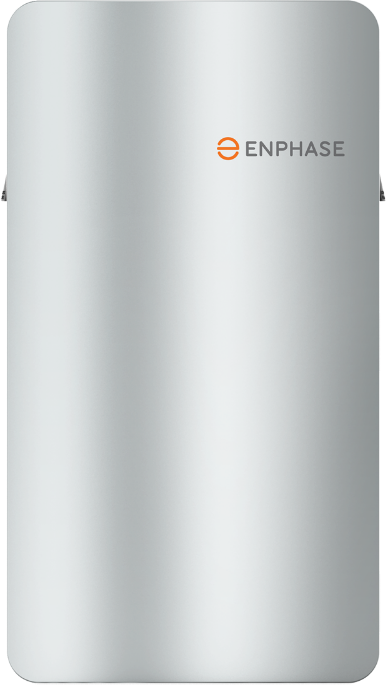

The IQ System Controller

The smooth white cabinet next to the battery, and the one that decides what your house does when the grid goes down — islanding the home, running it off the battery, and reconnecting when the utility comes back.

Specs & why they matter

  • The microgrid interconnect device: what physically and legally separates your house from the grid
  • UL 1741 listed for grid-forming operation
  • Without it an Enphase array shuts down in an outage no matter how much sun is on the roof
  • A deep cabinet rather than a thin panel, which is how you tell it from the battery beside it

6 of 7

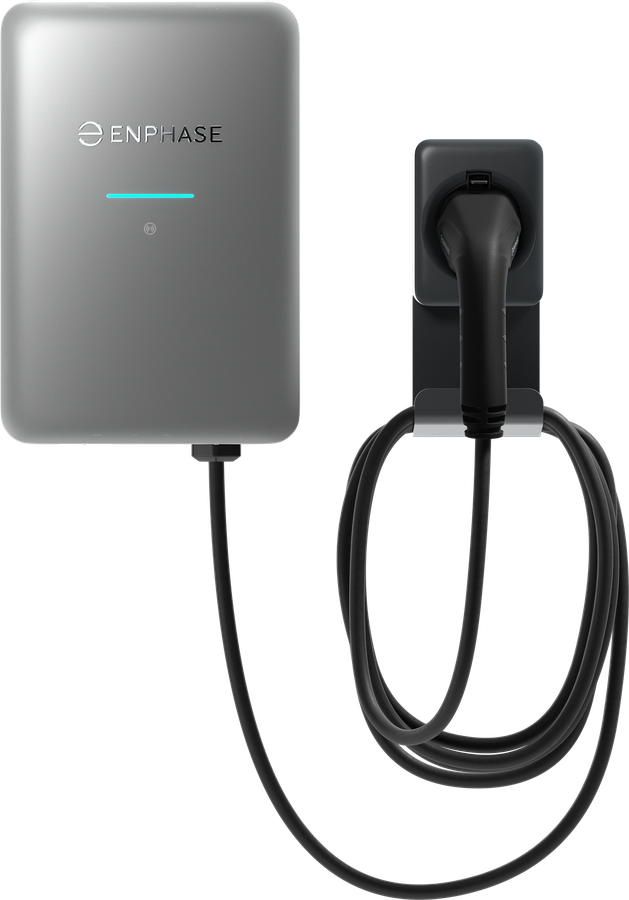

The IQ EV Charger

The car charger on the wall, fed from the same solar and battery set. When it is wired into the system properly it can charge from what your roof is making rather than from the grid.

Specs & why they matter

  • Up to 48 A / 11.5 kW
  • Talks to the rest of the Enphase system, so the car can be set to charge on surplus solar instead of grid power
  • Hard-wired on its own circuit — the breaker size, not the charger, usually sets the ceiling

7 of 7

Monitoring

The piece almost nobody checks. It is what turns a system that is quietly half-broken into a system you actually know is half-broken.

Specs & why they matter

  • Reports panel by panel, not just a system total
  • Production, consumption and battery state in one place
  • The only place a slow failure is visible before the utility bill is

Take Charge of Your Power

Energy Independence Through Solar, Battery, & EV Charging

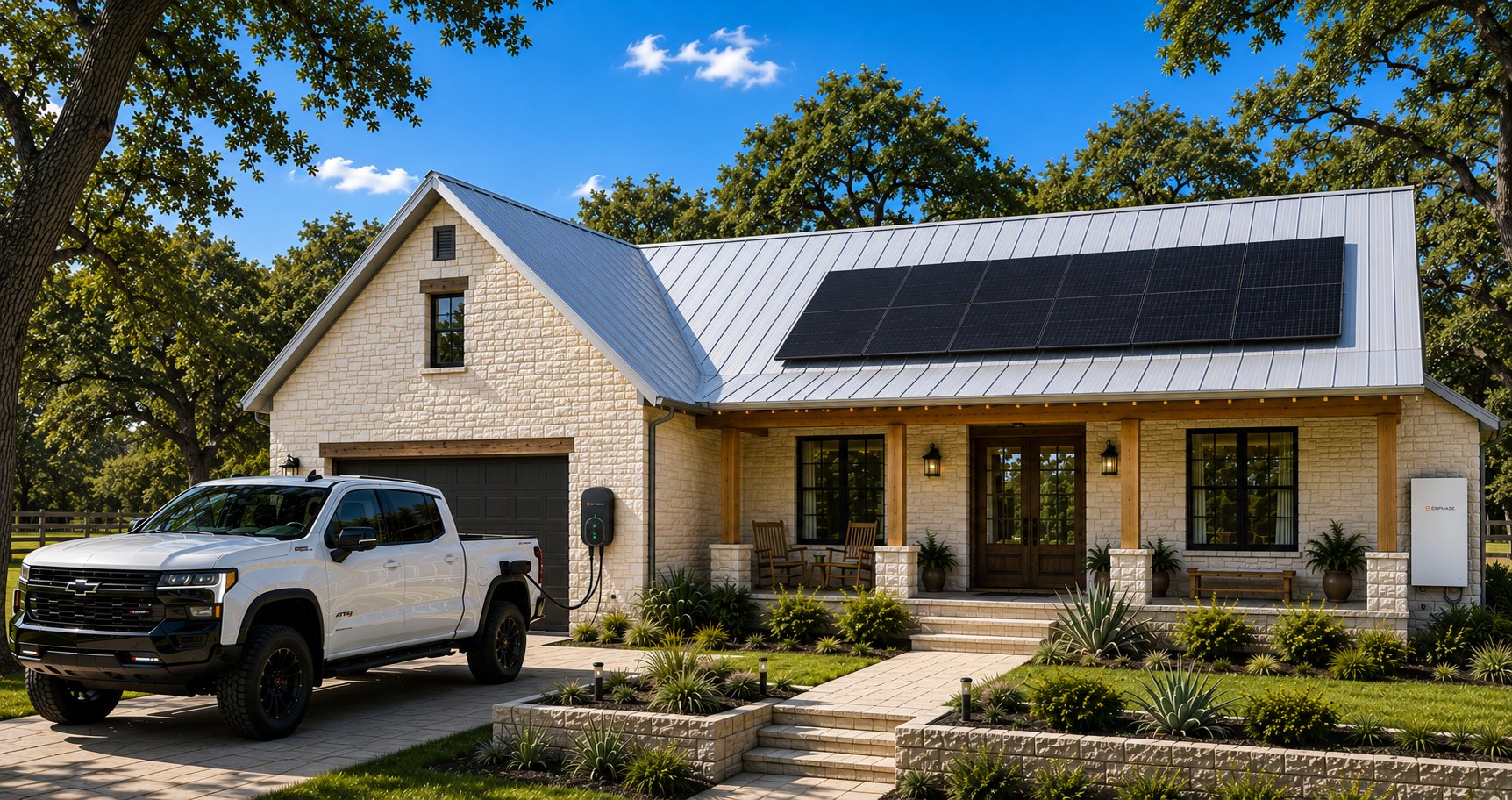

A Texas Hill Country home with rooftop solar panels, an Enphase IQ Battery on the wall, an IQ EV Charger and an electric truck charging in the driveway1234
Enphase Certified Installer

Hover a benefit to find the hardware behind it.

Book Free Battery Estimate Trip Now

Upgrade Your Energy System with Enphase

Same roof. Same 30 panels. Twice the power.

2015-era system

6,000watts
  • Thirty panels at about 200 watts each
  • One central inverter — a single point of failure
  • High-voltage DC running across the roof
  • Not battery compatible
  • No way to see a single failing panel
The same roof, upgraded

12,300watts
  • Thirty panels at about 410 watts each
  • A microinverter per panel — one failure is not an outage
  • AC on the roof, with rapid shutdown to current code
  • Battery and EV charger ready
  • Panel-level monitoring, every day

Texans Serving Texans

About Us

Enphase Batteries and EV Charging

Enphase is not a box, it is a platform. The microinverters on the roof, the IQ Battery on the wall and the EV charger in the garage all run on the same system and report into the same app. That only pays off if whoever works on it understands the whole thing rather than one piece of it.

IQ Battery is the natural choice if your solar is already Enphase. It keeps chosen circuits running when the grid drops, stores what your panels make during the day, and is managed from the app you already use. The honest limit is the same as any home battery: it carries the circuits you pick, for as long as the capacity you bought allows. Decide what you want kept alive and for how long before anyone quotes you — that answer drives the whole design.

Enphase EV charging belongs on a house that is already Enphase. The car charges from your own production when the sun is up and backs off when the battery needs to hold reserve for the house, all visible in one place instead of three. If what you want is the cheapest charger wired to the wall, a general electrician will beat our price — worth knowing before you call.

Microinverter trouble is a different job. If a panel or two has gone quiet the cause is usually a failed microinverter rather than the panel itself, and because the electronics sit on the roof behind the array nobody notices until the bill moves. That is repair work, and we do plenty of it.

Upgrade Your Energy System Now & Pay Later

Payment Options — Financing Available Through GreenSky®

With payment options we can help you now while you sort everything out with no penalty.

See the Plans
